TROMBIA SWEEPER
Convert your wheel loader into a full-scale city sweeper
Trombia attachment is the world’s only PM2.5 certified street sweeping attachment, known for its extraordinary dust removal speed, its high-performance broom system for mechanical debris, and the filterless cyclone for dust control.
Trombia sweeper attachment mounts with over 8.5 ton (kg, operating weight) wheel loaders and uses the auxiliary hydraulics for power intake. Thanks to the global-wide patented Trombia Airknife technology Trombia sweepers remove both fine silica and street dust and heavier debris such as gritting sand and recycling waste.
Trombia is the ideal choice for municipalities and industrial operators and contractors who have existing fleets of loaders and need power and speed for effective power sweeping.
SOLVE YOUR DUST CHALLENGE
Applications for Trombia Sweeper
Municipalities
Remove PM2.5 street dust particles and carry-out spring cleaning effectively.
Parking facilities
The Trombia sweeper effectively cleans parking facilities, removing dirt, debris, and fine particles with precision.
Seaports and airports
Clean vessel decks, aprons, warehouses, driveways and logistic centres.
Racetracks
Pick-up oil absorbers, asphalt dust and mechanical debris.
Pulp and Steel
Remove steel and pulp dust fast and effectively.
Recyclings
Recycling and waste industries have to deal with challenging materials and fine dust particles.
Silica dust
Trombia sweeper is the one solution you need for overall silica dust management. Remove silica permanently from your worksite.
Milling sites
Trombia sweeper picks up both heavy millings and the fine dust from the milling rail. Trombia leaves the surface dry and ready-to-pave.
Military
Military airbases, landing sites and training facilities are locations where you need to sweep fast , accurately and quiet.
Features
Trombia Airknife - for effective PM2.5 dust removal
The 2,2m wide Trombia Airknife gives you enormous efficiency in both fine dust and debris removal. The Airknife blasts with over 150 km/h on the road surface and removes the fine silica and street dust off the ground to air circulation.
Trombia Cyclone - for world-leading dust control
During the Trombia Technology cleaning process a powerful Trombia Cyclone is cleaning the air inside the air circulation. The cleaned air is then blasted back on the surface with the Trombia Airknife.
See the Trombia Cyclone operations inside the Trombia Sweeper on this video.
Performance Broom - for efficient heavy debris pick-up
The horizontally and vertically floating Trombia performance broom is 2,2 metres wide and picks up the sand, debris and waste. Trombia broom uses 915mm (36”) wafer brush rings that are replaced after 80 – 200 hours of broom rotation.
Waterless - sweeping possible in sub zero temperatures
Trombia sweeping and dust removal delivers the greatest performance on waterless surfaces. The primary dust control method with Trombia sweeping is its unique cyclone separator technology that enables waterless sweeping surfaces, but is PM2.5 certified to the highest standards in global street sweeping.
High speed power sweeping - up to 12 km / h
Thanks to the patented Trombia sweeping technology you can use your wheel loader to pick up heavy debris and dust in speeds up to 12 km / h. With the 2.2m wide airknife this delivers over 25 000 m2 dust and debris cleaned surface per hour.
PM2.5 certified
Trombia sweeper attachment is the world’s only sweeping attachment capable of meeting the highest standards of EUNited PM2.5 street and silica dust Test. The test is traditionally performed by heavy duty sweeper vehicles and street scrubbers.
TROMBIA
Unboxing
First Startup
Installing and First Startup of your Trombia attachment
How to drive - demonstration
Learn how to operate with Trombia Sweeper
Daily maintenance
Daily maintenance of your Trombia attachment is simple
STANDARD EQUIPMENT
Standard equipment
- 3-hose hydraulics
- Sweeping automation – Height, RPM and Tilt sensors

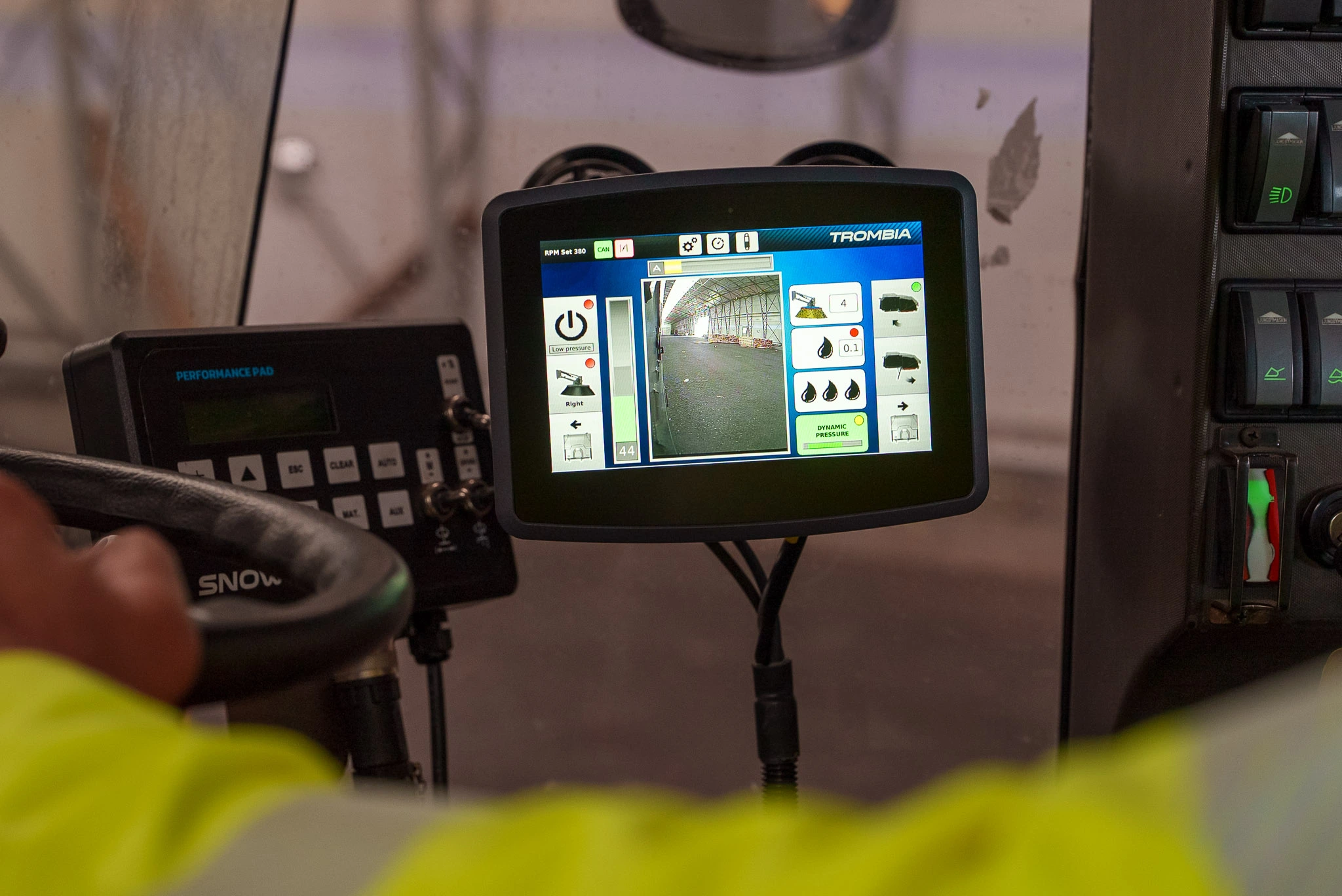

- Trombia Display and Plug&Play installation kit
- VOLVO/ISO, CAT FUSION, JRB 416 or Universal coupler
- Nordic Sweeping Kit Extra Dust Control
- Sidecurb camera
- Sideshift
- 4 stars EUnited PM2.5 Dust control certification
GALLERY

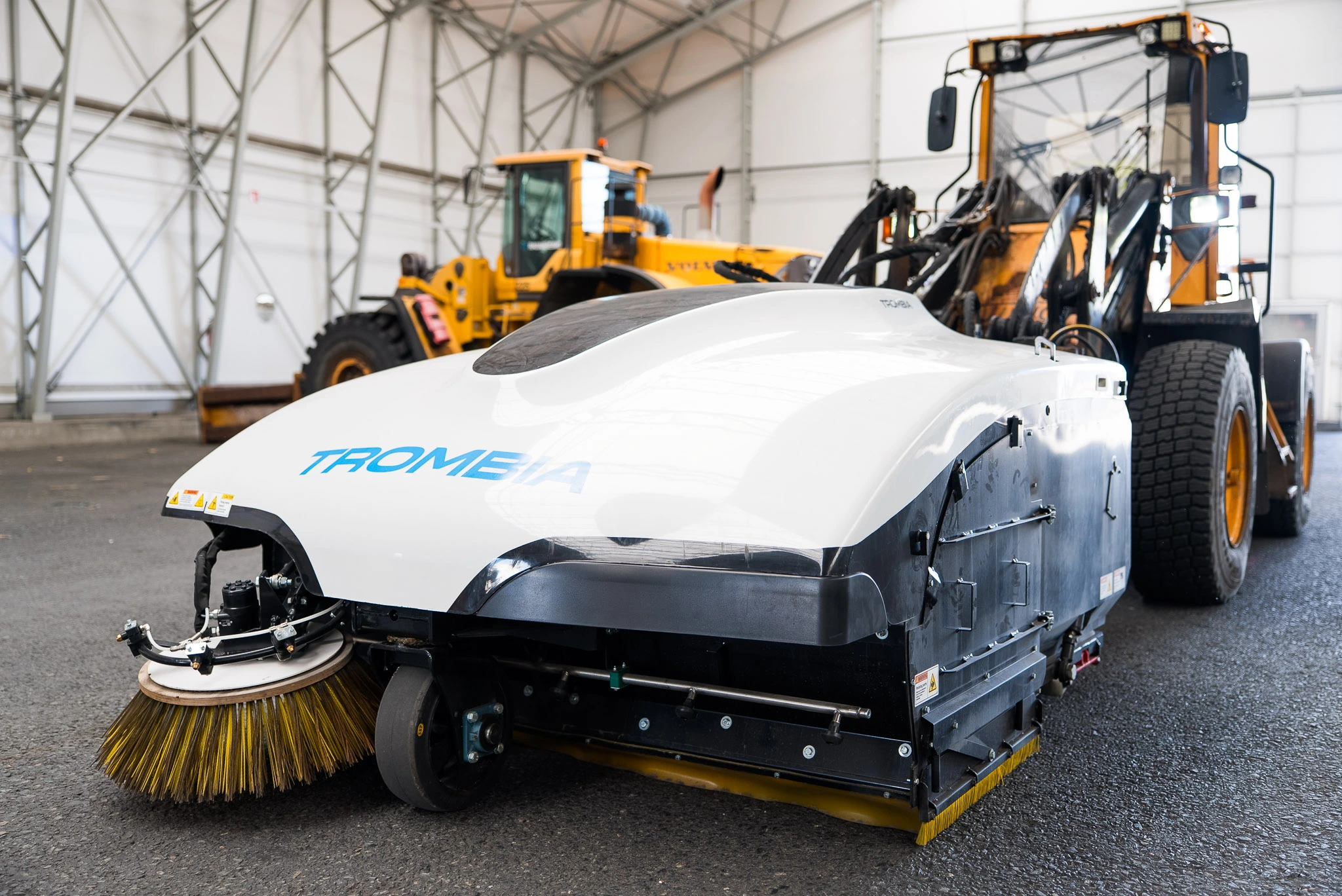

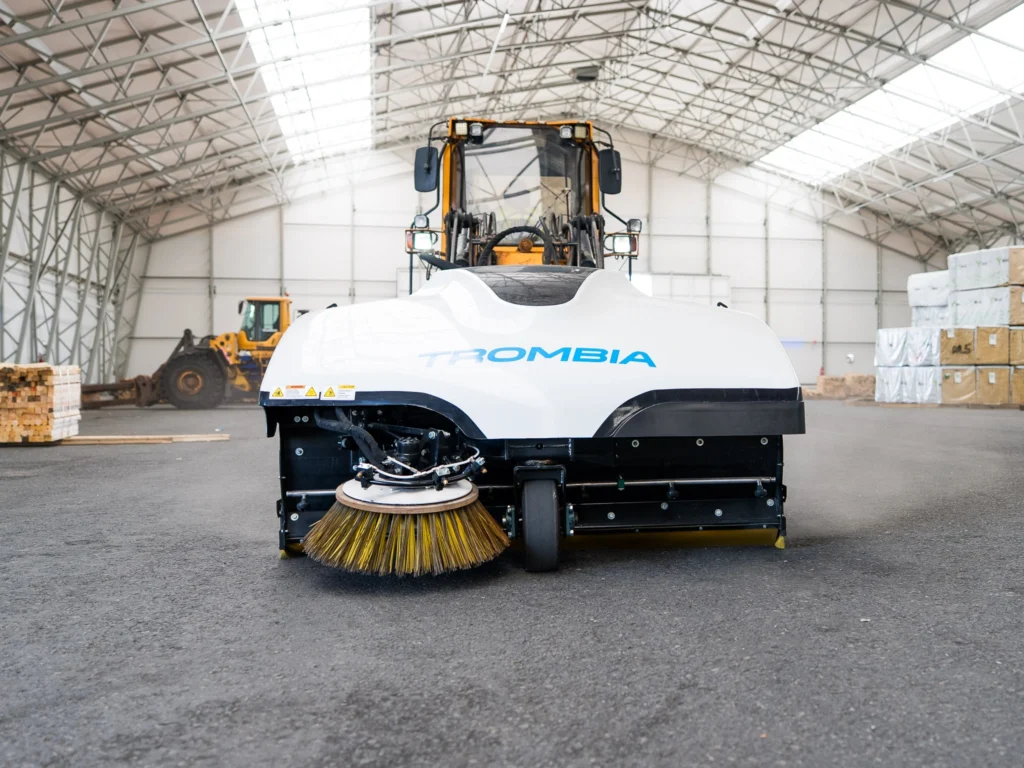

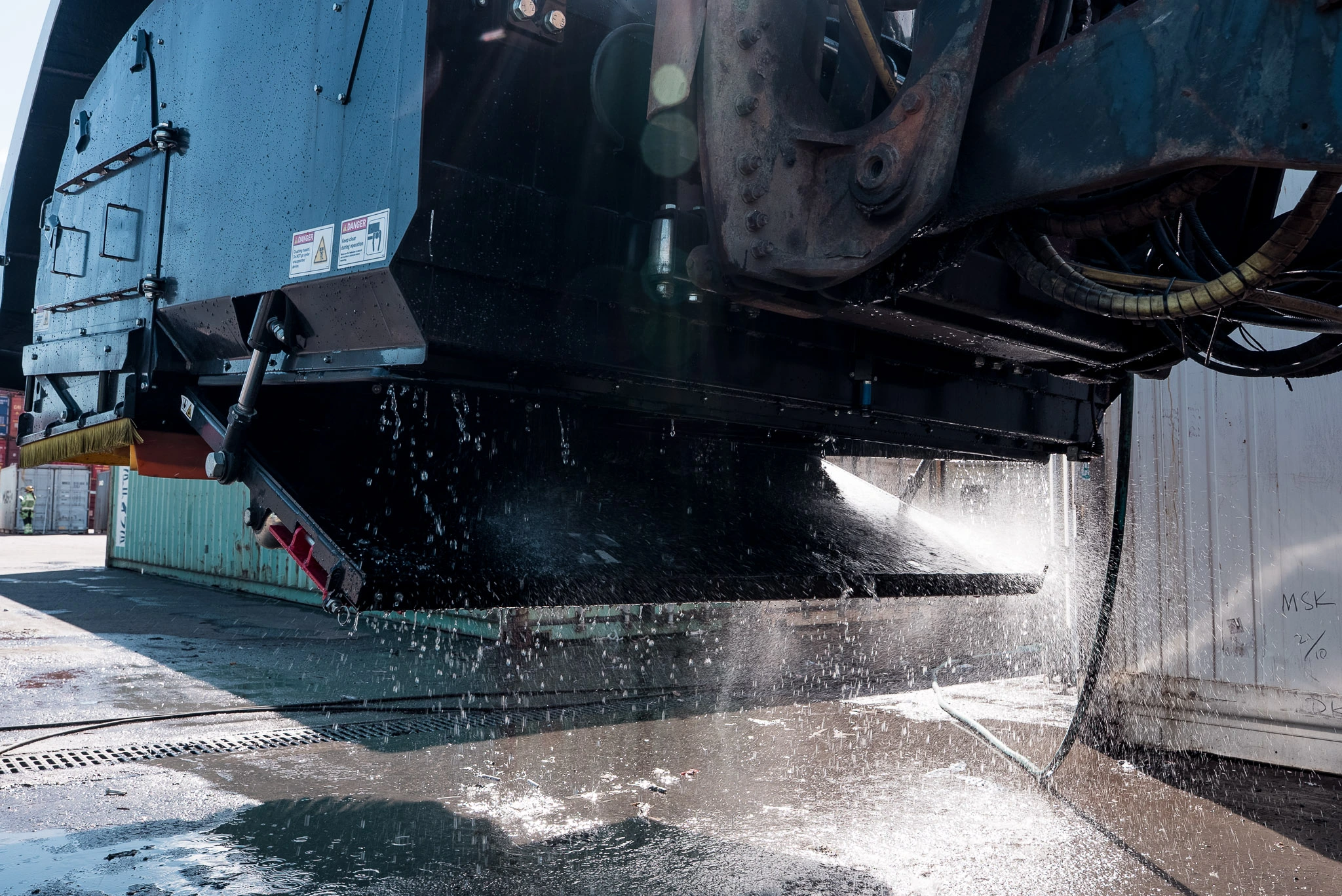

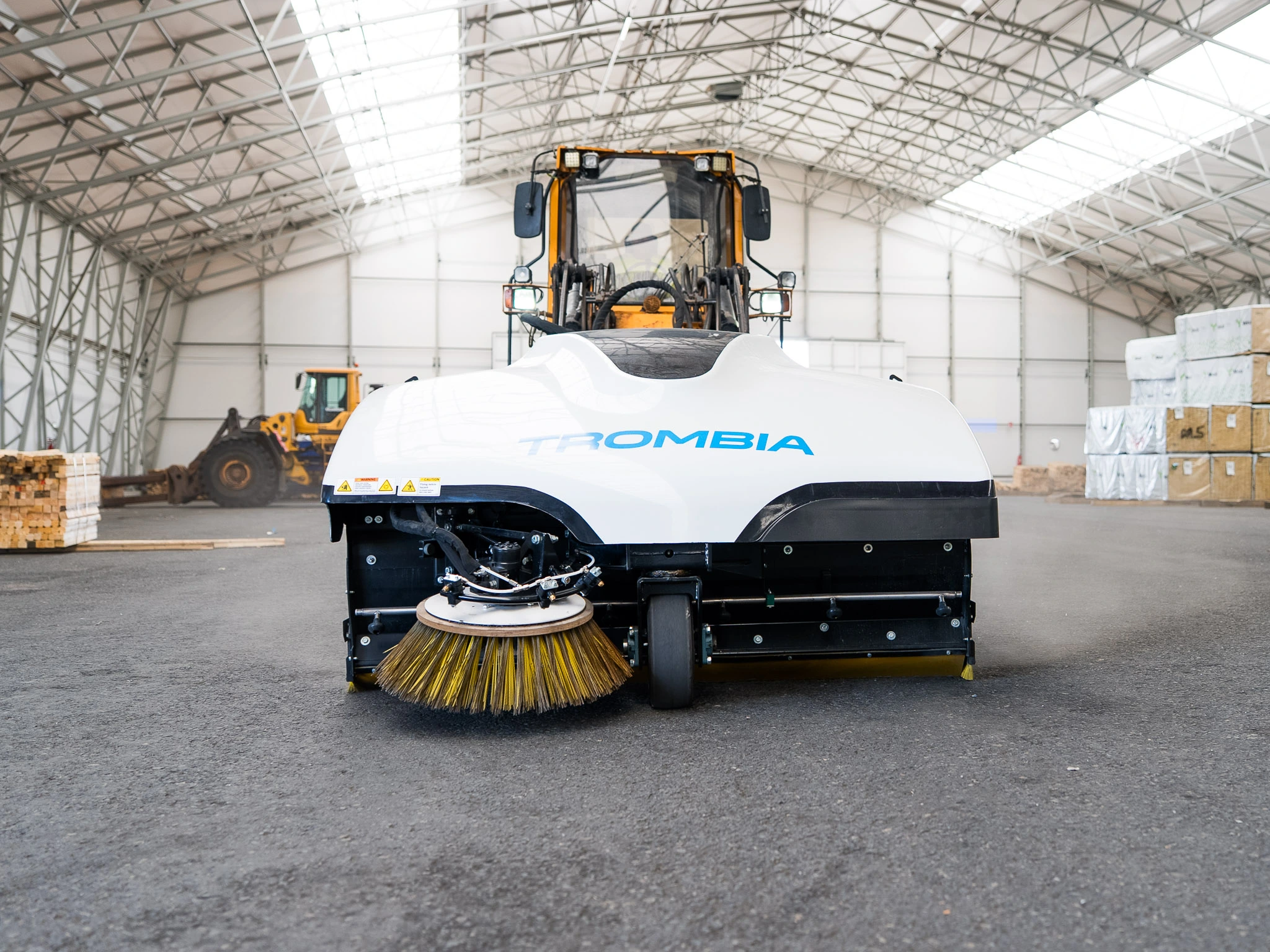

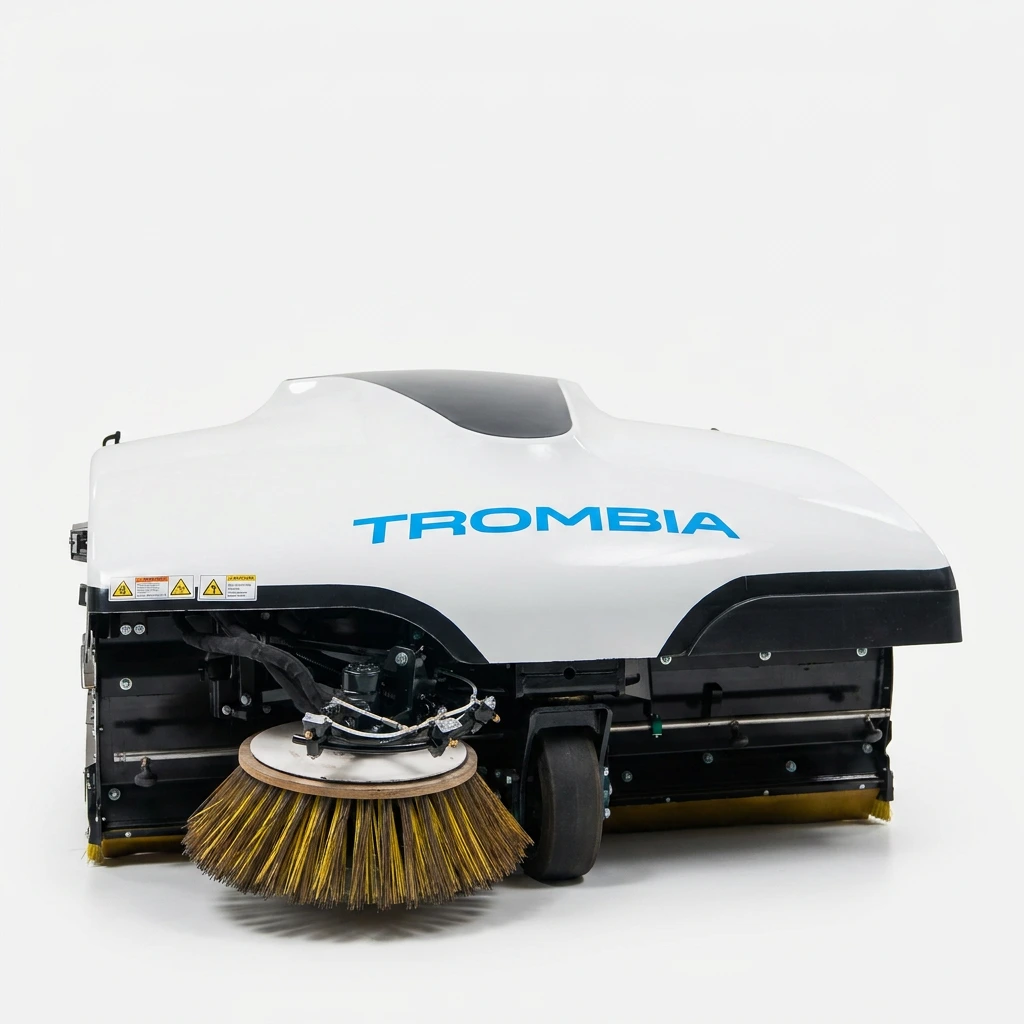

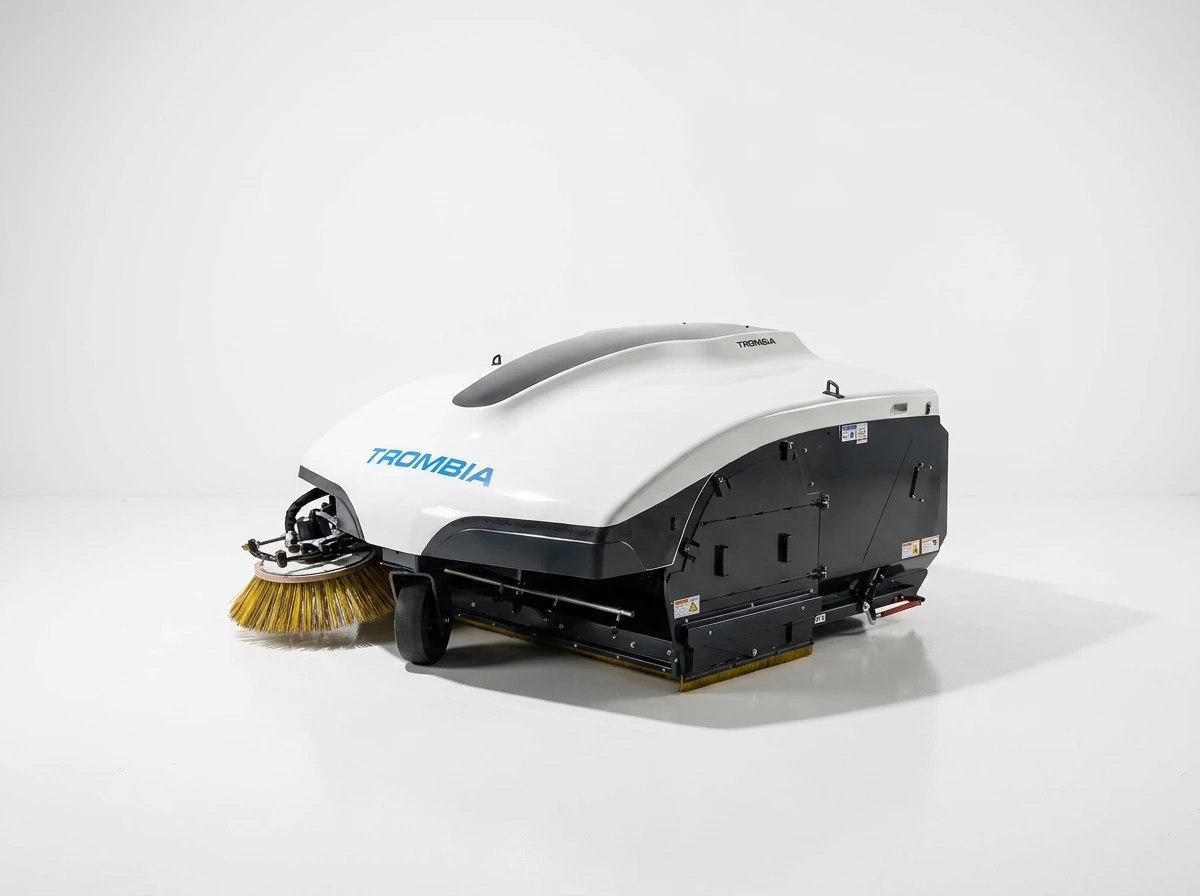

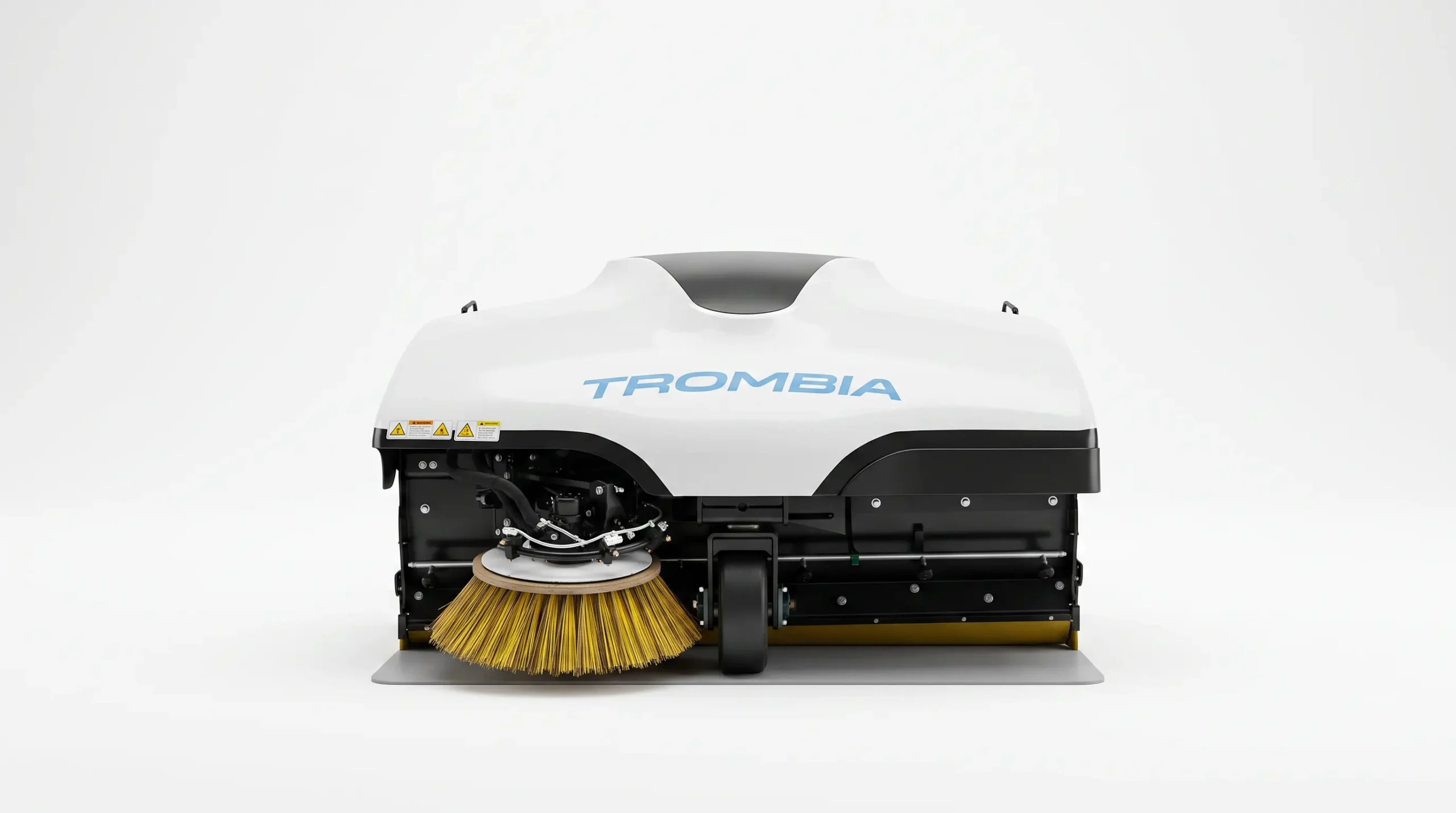

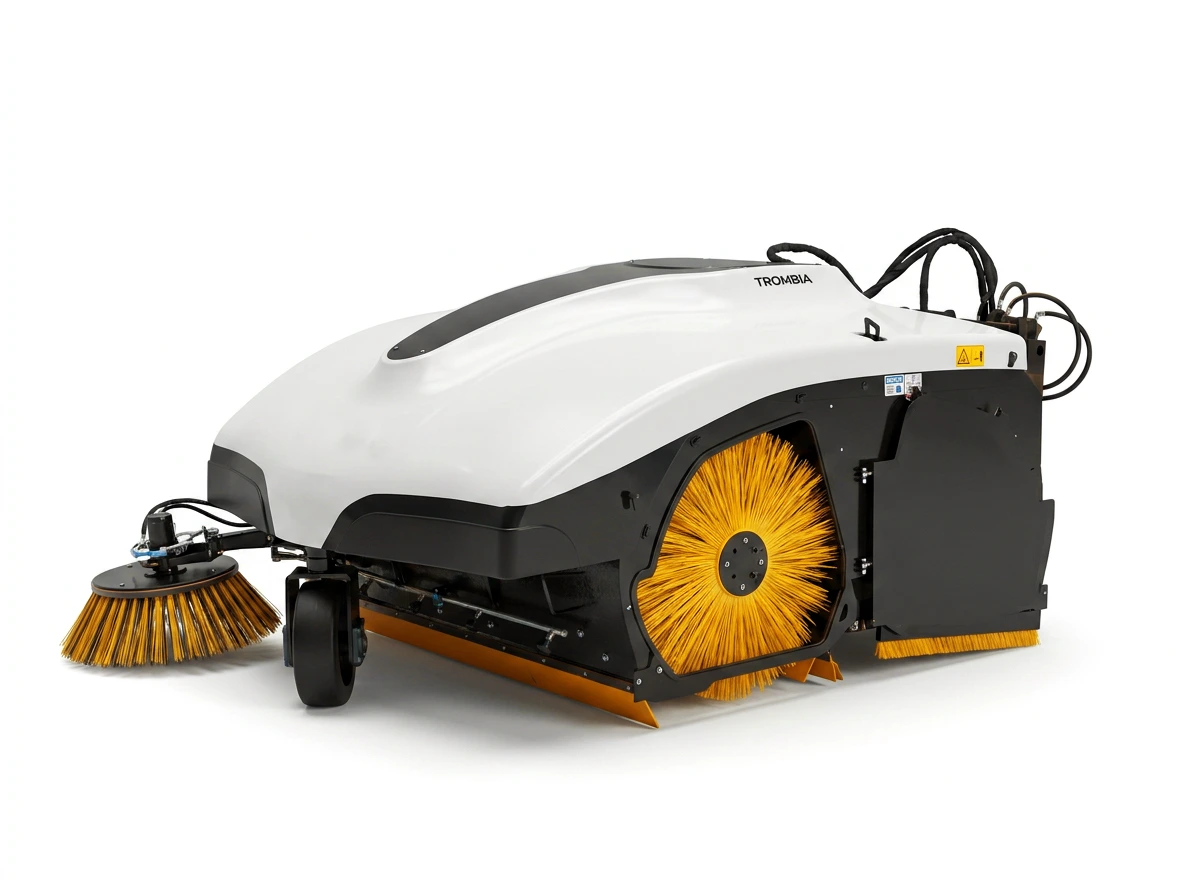

Images of Trombia Sweeping Attachment
Technical data
| Data | Metric | Imperial |
|---|---|---|
| Length, A | 319cm | 10,46ft |
| Length, B (w. Gutter broom) | 254cm | 8,33ft |
| Width, C | 232cm | 7,61ft |
| Width w. Gutter broom D | 261cm | 8,57ft |
| Height, E | 140cm | 4,59ft |
| Airknife dust removal width (Trombia Airknife) | 220cm | 7,21ft |
| Empty weight | 1600kg | 3527lbs |
| Hopper capacity | 1,8m3 | 2,35m3 |
Match your loader
| BRAND | SUITABLE MODELS |
|---|---|
| CASE | 521, 621, 721, 821, 921, 1021 |
| CATERPILLAR | 916, 918, 920, 924, 926, 928, 930, 936, 938, 950, 962, 966 |
| DOOSAN | DL200, DL220, DL250, DL280, DL300, DL350 |
| HITACHI | ZW150, ZW180, ZW220, ZW250, ZW310 |
| JCB | 412, 413, 416, 417, 419, 426, 427, 435, 436, 437, 446, 456, 457 |
| JOHN DEERE | 344, 444, 524, 544, 624, 644, 724, 744 |
| KRAMER | 8155, 8180 |
| KOMATSU | W70, W90, W120, W170, W180
WA180, WA200, WA250, WA270, WA300, WA320, WA380 WA420, WA 430 |
| KUBOTA | N/A |
| LIEBHERR | L524, L526, L528, L534, L538, L542, L544, L546, L550, L554, L564, L566, L574 |
| LINK-BELT | L120, L125, L130 |
| LIUGONG | 835, 840, 842, 848, 855, 856, 862, 877, 886 |
| LJUNGBY | L9, L11, L13, L15, L18, L20, L25, L30 |
| LÄNNEN | 8600, 8800 |
| NEW HOLLAND | W110, W130, W170, W190 |
| TEREX | TL160, TL210, TL260, TL310, TL360, TL420, TL450, TL510
TXL160, TXL200, TXL250, TXL300, TXL400, TXL500 |
| VENIERI | 763, 963 |
| VOLVO | L50, L60, L70, L90, L120, L150 |
| WACKER NEUSON | WL95 |
| WILLE | 865 |
TROMBIA EXPERIENCES
Customer reviews
INDUSTRIAL PLANT CONSTRACTOR
Luginbühl et Cie SA
The reasons for the purchase were mainly related to dust, because with your model we have zero dust. In terms of use, it only takes a few hours of practice to understand everything. The handling of the tool is very fast, and the use is quite simple to understand thanks to the screen which is very easy to use. In terms of gains at work: the speed of work thanks to the cleanliness after the first pass which is excellent and the capacity of the tank of the sweeper which is large and also more compact compared to our old model which exceeded 30cm more on each side !! This is a model that I would recommend to any company.
PORT MAINTENANCE
Hallands Hamnar, Varberg, Sweden
“Before Trombia we swept with rotary brooms that did not pick up the material. We bought Trombia after a demonstration, as it looked so fast and simple way to keep the port area clean. After two years, have to say it works great. On our large surfaces it is perfect. Plus it is easy to empty and easy to clean.”
MUNICIPAL MAINTENANCE
City of Vaasa, Finland
“In only a couple of weeks it was evident this purchase was exceptionally good investment. The Trombia achieves significantly more dust controlled cleaning during street dust season. We can start cleaning earlier even when night time temperature drops below zero, because Trombia won’t water the ground.”
SEAPORT TERMINAL OPERATIONS, WAREHOUSE MAINTENANCE
Adolf Lahti Oy, Helsinki / Kotka, Finland
“We have invested in several Trombia sweepers for our pulp and cargo terminal operations. With Trombia we have been able to achieve significantly higher level of cleanliness in our areas. This is particularly importanty in warehouses where our clients expect accurate dust removal. That was never possible with regular sweepers.”
TUNNEL MAINTENANCE, WASTER WATER PLANTS
Arkea Oy, Turku, Finland
“The main reason for purchasing Trombia were the exceptional dust removal and dust control capabilities. Maintenance costs with Trombia have been marginal – only wear out items really. Difference in efficiency compared to our previous solution – a self propelled compact sweeper – is huge. Speed, area coverage and cleaning result are on different level.”
STREET CLEANING AND INDUSTRIAL PROPERTY CLEANING SERVICES
MHS Palvelut Oy, Mikkeli, Finland
“With Trombia you can keep up high speeds through the spring cleaning season and thanks to the collection capacity and work width your efficiency is dramatically larger compared to other sweeping equipment!.”
PORT, PULP WAREHOUSE AND VESSEL DECK CLEANING AT PORT OF HELSINKI

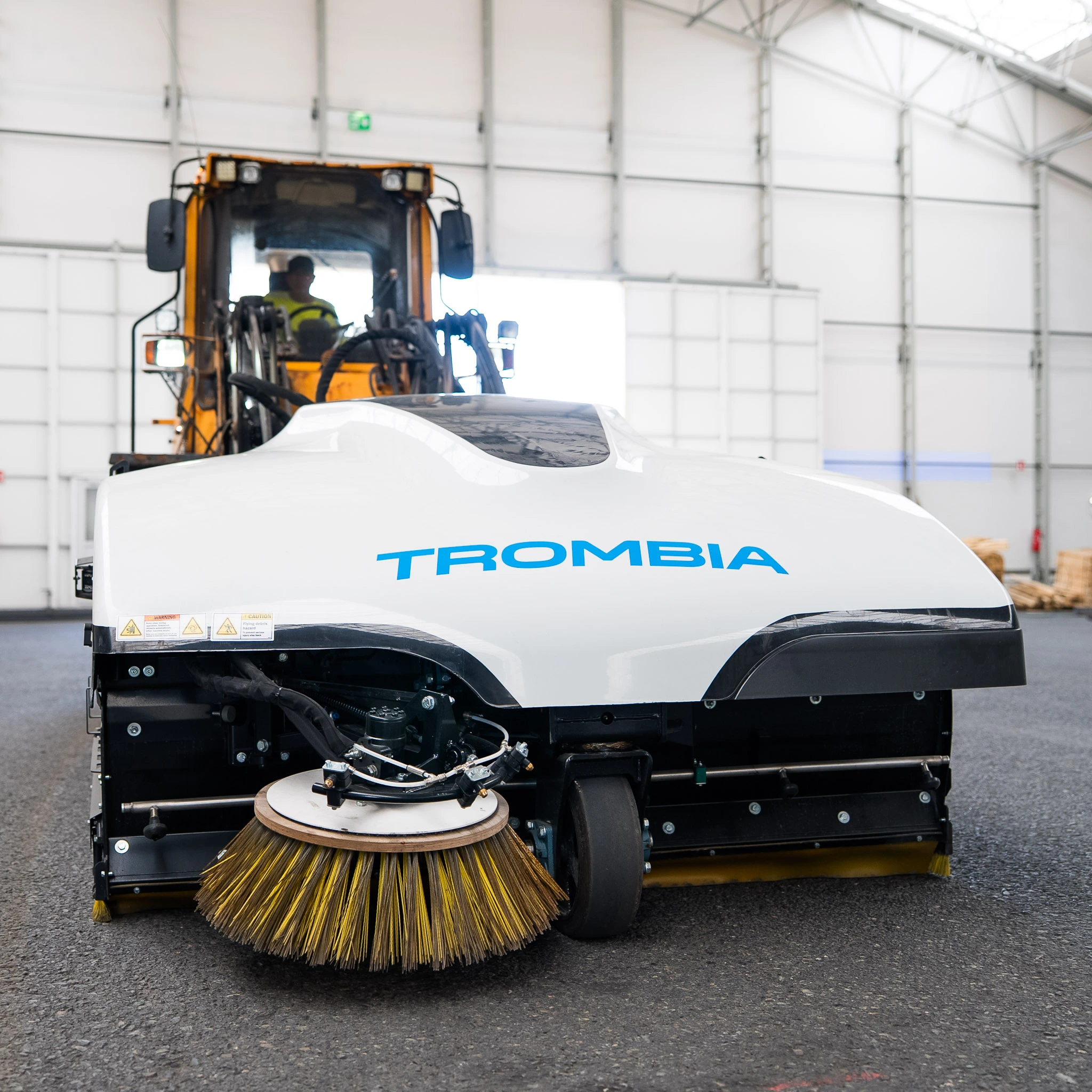

Vellogs Oy, Helsinki Port, Finland
“Trombia has been a terrific investment. When we did one demo services to our port customer, the sweeping services have since been ordered from us!”
